ASM-1 Synthesizer and ±15 volt Power Supply
|
| The ASM-1 is a single voice analog synthesizer design by Gene Stopp. I bought my first board from Gene (and a second from someone on the the web). The boards are now available from Elby Design. The front panel was designed by Christopher List (I have two front panels). Only one finished synth at this time. To power the system I created a 2u rack mounted power supply using two Power One 15 volt 1.5 amp linear supplies. |
 |
|
Front View
|
 |
|

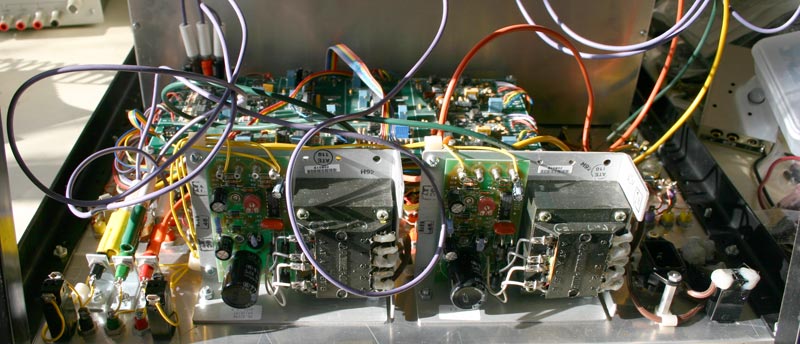

Back View 1
|
 |
|

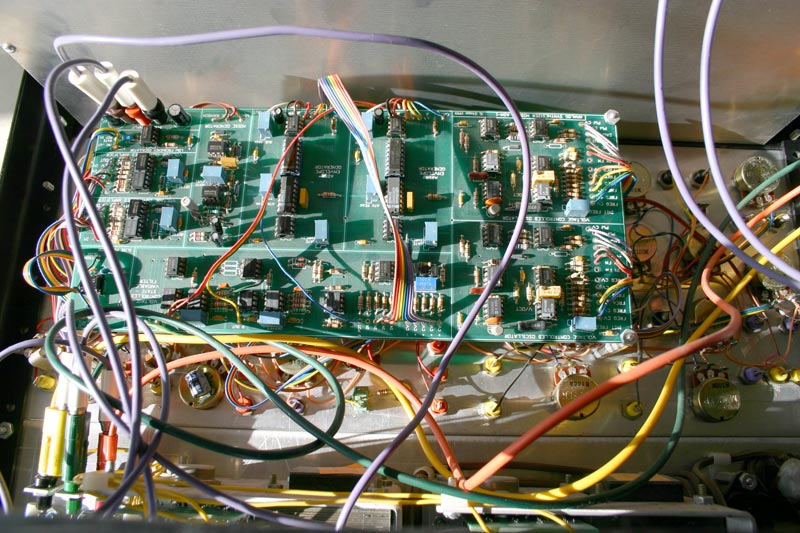

Back View 2
|
